Manufacturer of Lifestyle Roller Screens
The Lifestyle Roller Screen is specifically designed for covering pergola / verandah openings and all styles of windows including corner windows, bay windows, sliding doors and alcove type entrances.
The Lifestyle Roller Screen can span up to 4.5 meters in width and 3 meters in height as a single unit. Unlimited spans can be achieved by using support type mullions.

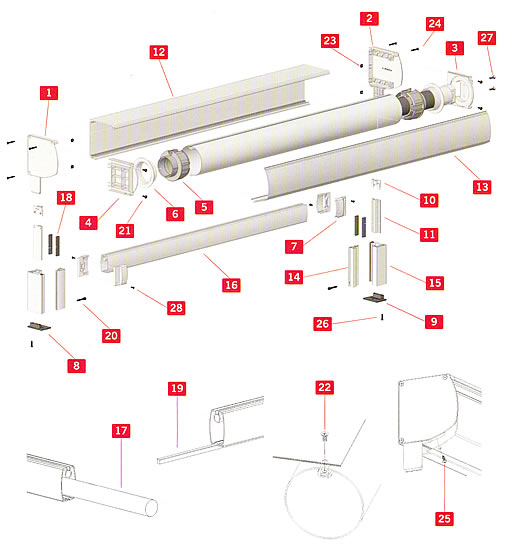

Specifications
| 1 | Left end cap 100, White (K) | 15 | Read guide, White |
| 2 | Right end cap 100, White (K) |
16 | Charge profile, White |
| 3a | Gaviota Simbac motor lateral support |
17 | ø 22 sleel effort bar |
| 3b | Somfy motor lateral support |
18a | 10x4mm. self-adhesive neoprene (K) |
| 4 | Lateral support 50 (K) |
18b | Double zip roll 50m |
| 5a | Adaptor cap for pulley, 78tube (K) |
19 | 4m. cutted nal(K) |
| 5b | Adaptor cap for pulley, 70tube (K) |
20 | Hexagonal screw M4x25 Din-912 Stainless Steel A4 (K) |
| 6 | Fixation ring (K) |
21 | Screw M4x10 Din-7985 Stainless Steel A2 (K) |
| 7 | Stopper for charge profile, White (K) |
22 | Screw M4x8 Din-965 Stainless Steel A4 (K) |
| 8 | Left cap for guide, White (K) |
23 | Square nut M4 Din-562 Stainless Steel A2 (K) |
| 9 | Right cap for guide, White (K) |
24 | Screw ø 3, 5x32 Din-7982 Stainless Steel A2 (K) |
| 10 | Entry guide (K) |
25 | Screw ø 3,5x6 Din-7981 Stainless Steel A2 (K) |
| 11 | Closing profile, PVC fabric |
26 | Screw ø 3,5x16 Din-7982 Stainless Steel A2 (K) |
| 12 | Box profile, White |
27 | Screw ø 4,2x16 Din-7982 Stainless Steel A2 (K) |
| 13 | Frontal profile, White |
28 | Screw ø 2,9x9, 5 Din-7981 Stainless Steel A2 (K) |
| 14 | Frontal guide, White |

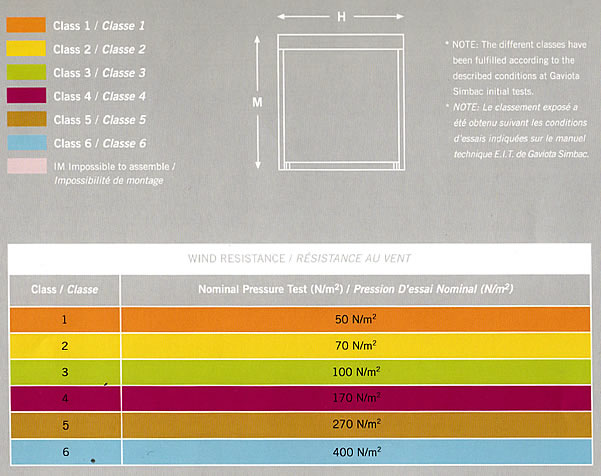

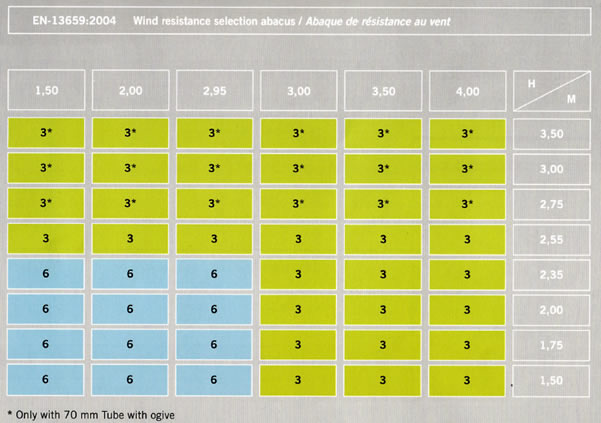

High WIND RESISTANCE:
Officially approved system fulfilling Class III according to UNE-EN 13659:2004 norm.
