Direct Drive Tubular Motorisation

By applying our advanced technology in full accordance to strictly defined procedures and continuous training of personnel, Croci Australia has always been in the position to produce roller shutters and quality components at low costs whilst consistently meeting high standards.

Similarily, Croci Australia feels compelled to our customer to provide not only the utmost in customer service but we feel however that our ultimate task is to offer easiness of use, confidence and comfort in everyday life.

Our high degree of specialization and expertise has also been applied when offering our customers the ultimate in automation for our roller shutter, roller screen and folding arm awning product ranges.

The enjoy tublar motor range allow us to meet all customer's requirements every time!

Mechanical Motors

Enjoy mechanical motors are the most commonly used motors within our range. Only 240 volt power is required to operate them. They can be controlled by means of a hard wired wall switch, key switch or swipe card system. Wires are generally run down wall cavities from the motor down to where the switch is to be located.

It is also possible to connect a mechanical motor to a home automation system.

Motors for Roller Shutters, Roller Screens and Folding Arm Awnings

Believing In expertise!

Electronic tubular motor build in RECEIVER (integrated radio system)
JE50 RA9	Electronic limit switch set up, through transmitter Receiver integrated eRS9 (Frecuency: 916 MHz - OCEANIA) Tube motor diameter: Ø 45 mm Max. Load (Ø 50 mm): 110 Kg
10 Nm     20 Nm     30 Nm     40 Nm     50 Nm	OPERATING MANUAL

Electronic tubular motor
JE40 ELM	Electronic limit switch, set up limit switch through: Switch or buttom head Parallel connection Tube motor diameter: Ø 35 mm Max. Load (Ø 40 mm): 27,5 Kg
10 Nm	OPERATING MANUAL
JE50 ELMSH	Electronic limit switch, set up limit switch through: Switch or buttom head Parallel connection Tube motor diameter: Ø 35 mm Max. Load (Ø 40 mm): 27,5 Kg
10 Nm     20 Nm     30 Nm     40 Nm     50 Nm

Tubular motor, mechanical limit switch set up
JE40 FCM	Mechanical set up limit switch , through screws Tube motor diameter: Ø 35 mm Max. Load (Ø 40 mm): 27,5 Kg
10 Nm	OPERATING MANUAL
JE50 FCM	Mechanical set up limit switch , through screws Tube motor diameter: Ø 45 mm Max. Load (Ø 50 mm): 110 Kg
10 Nm     20 Nm     30 Nm     40 Nm     50 Nm	OPERATING MANUAL
JE50 FCH	Mechanical set up limit switch , through screws Tube motor diameter: Ø 45 mm Max. Load (Ø 50 mm): 110 Kg
10 Nm     20 Nm     30 Nm     40 Nm     50 Nm	OPERATING MANUAL
JE50 FCS	Extra Short motor 375 mm Mechanical set up limit switch , through screws Tube motor diameter: Ø 45 mm Max. Load (Ø 50 mm): 27 Kg
10 Nm	OPERATING MANUAL

Mechanical tubular motor, Manual override system by handle
JE50 FMM	Manual override, by handle Mechanical set up limit switch , through screws Tube motor diameter: Ø 45 mm Max. Load (Ø 50 mm): 110 Kg
20 Nm     30 Nm     40 Nm     50 Nm	OPERATING MANUAL
JE50 FMMR9	Manual override, by handle Mechanical set up limit switch , through screws Receiver integrated eRS9 (Frecuency: 916 MHz - OCEANIA) Tube motor diameter: Ø 45 mm Max. Load (Ø 50 mm): 110 Kg
40 Nm     50 Nm

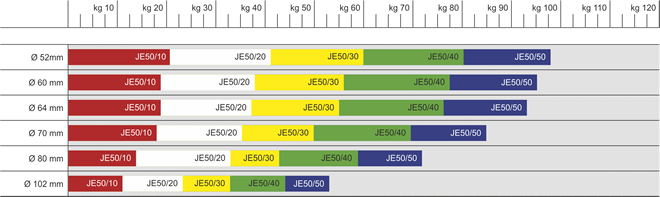

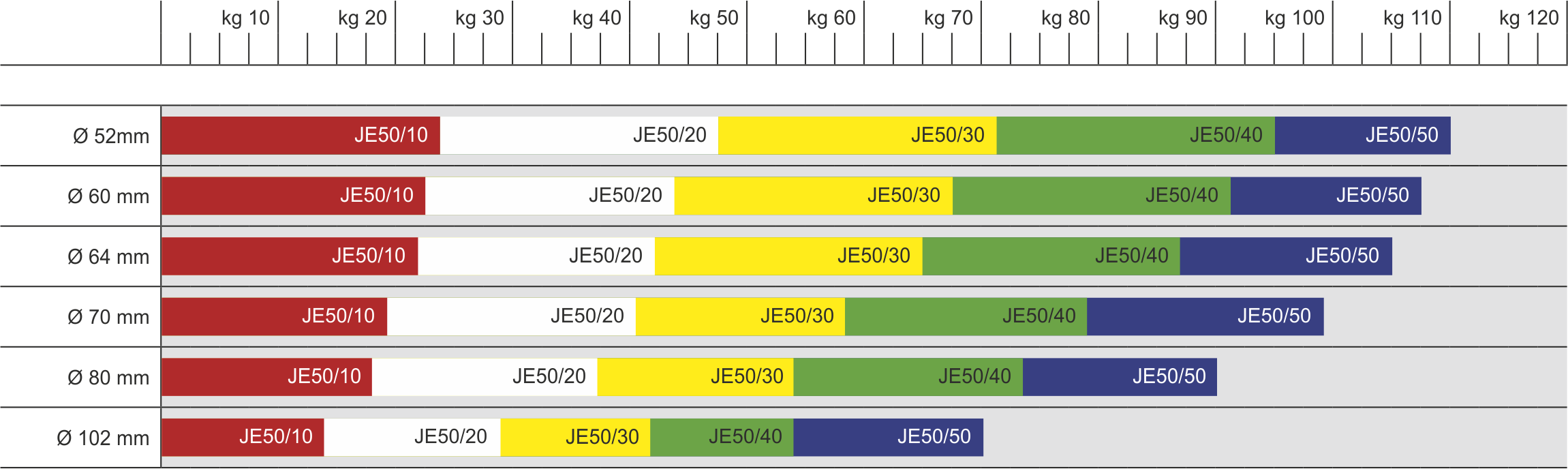

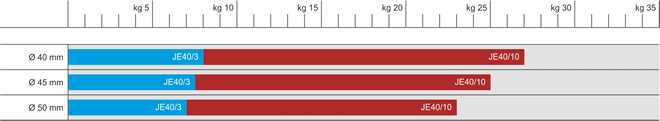

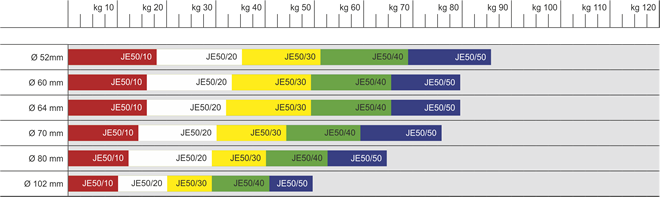

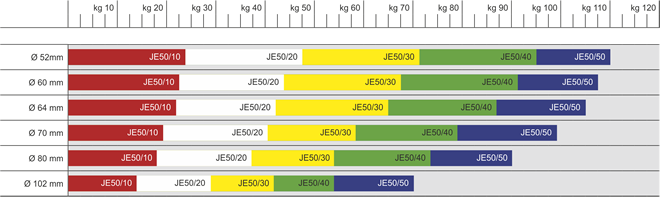

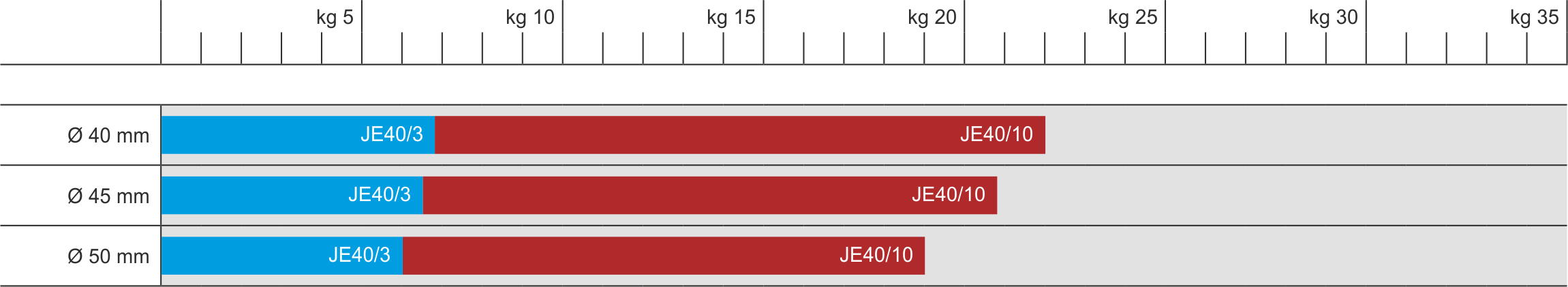

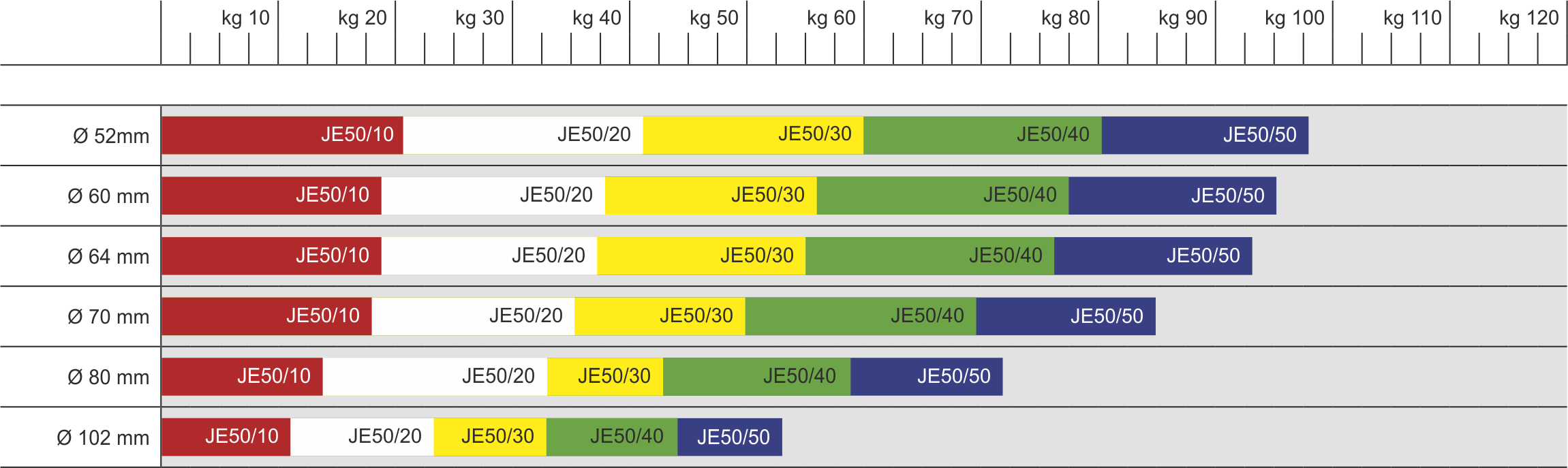

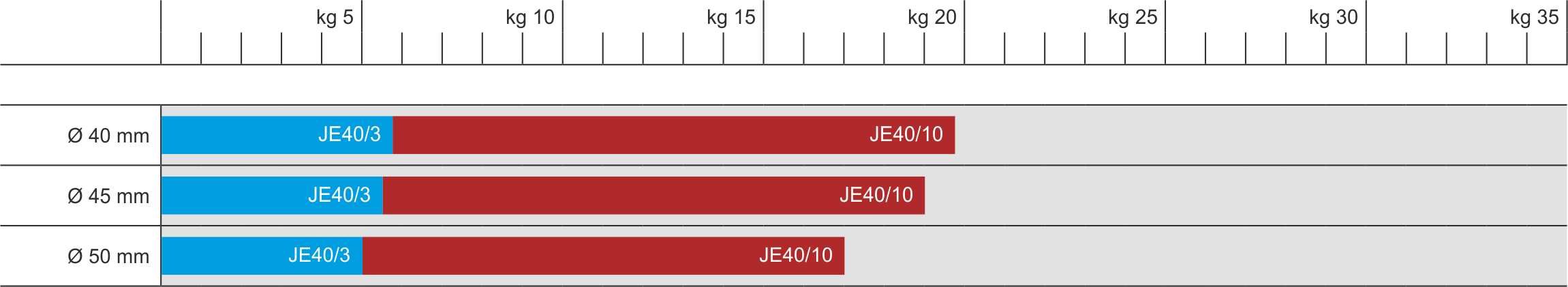

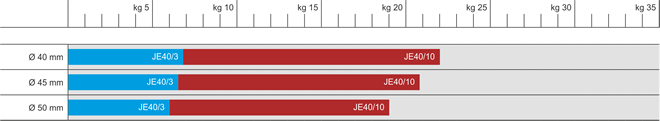

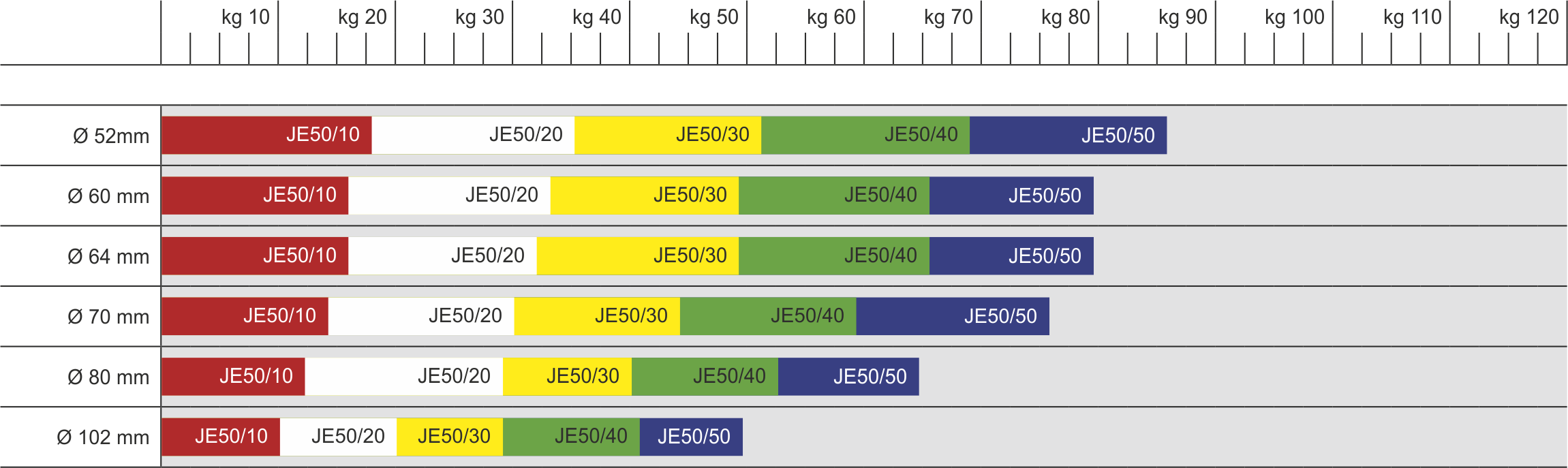

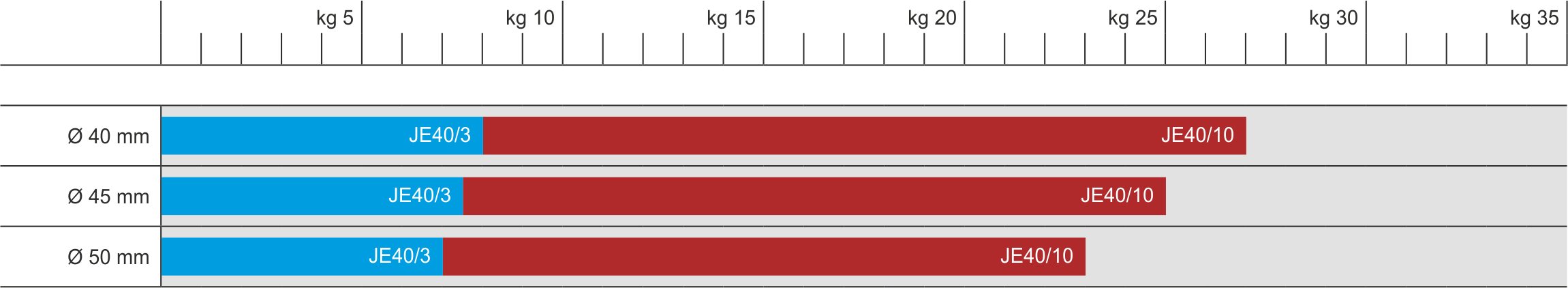

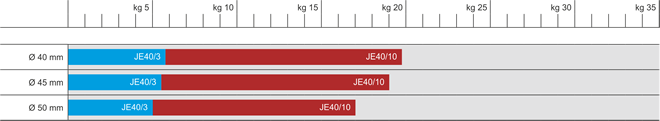

Selection Charts depending on the weight and height of the roller shutter and the winding pipe

Maximum height of roller shutter 1.5 m; slat up to 40 mm

Maximum height of roller shutter 2.5 m; slat up to 40 mm

Maximum height of roller shutter 3.5 m; slat up to 40 mm

Maximum height of roller shutter 1.5 m; slat up to 55 mm

Maximum height of roller shutter 2.5 m; slat up to 55 mm

Maximum height of roller shutter 3.5 m; slat up to 55 mm

Remote Control Motors

Enjoy radio controlled or also simply known as remote controlled motors are the most advanced motors our range. They are ideal for older solid brick homes where wall cavities made may not be clear or perfect for the renovation market were wiring to a switch can leave unsightly conduit or damage to walls and ceilings. Only 240v power is required to the point where the enjoy tubular motor is mounted. The roller shutter, roller screen or folding arm awning can now be controlled by a modern hand held or remote controls.

Group Controller, timers, wind sensors, wind /sun sensors, wind/sun/rain sensors are just some of the accessories that are on offer with enjoy motors!!!

Radio 916

HAND line of transmitters

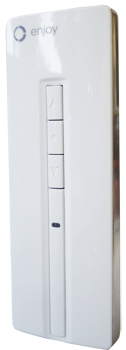

	EMSTEEL1 916     white Ergonomic transmitter to be used as portable one, fixed on the wall or as desktop type. It is done with a transparent wall holder. With this kind of transmitters, the user can manage individually 1 radio motor eRS9 (JE50RA9; JE50SUN R9; JE50SUNSF R9; JE50FMMR9; JE60FCIR9) or 1 electromechanical motor connected to any receiver eRS9 (RPRT916A01T; RPRH916A01S; RPRD916A01; RPRE916A01). Also one of their channels can be used as a general command, managing at the same time, all the motors eRS9 included in a centralization. To do it is necessary learn itself, in many motors as you want to add in the group. Rolling Code System eRS8 compatible (Frecuency: 916 MHz - OCEANIA) 3 buttons to comand (Up, Stop, Down) Learning button on the back Integrated wall holder Lithium battery 3V CR2430 Dimensions: 122 x 42 x 9 mm

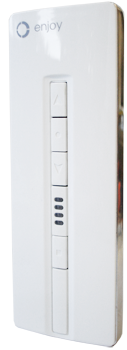

	EMSTEEL4+ 916     white Ergonomic transmitter to be used as portable one, fixed on the wall or as desktop type. It is done with a transparent wall holder. With this kind of transmitters, the user can manage individually 4 radio motors eRS9 (JE50RA9; JE50SUN R9; JE50SUNSF R9; JE50FMMR9; JE60FCIR9) or 4 electromechanical motors connected to 4 receivers eRS9 (RPRT916A01T; RPRH916A01S; RPRD916A01; RPRE916A01). Also one of their channels can be used as a general command, managing at the same time, all the motors eRS9 included in a centralization. To do it is necessary learn itself, in many motors as you want to add in the group. Rolling Code System eRS8 compatible (Frecuency: 916 MHz - OCEANIA 3 buttons to comand (Up, Stop, Down) One channel selection button and 4 LEDs to show the selected channel Learning button on the back Integrated wall holder Lithium battery 3V CR2430 Dimensions: 122 x 42 x 9 mm

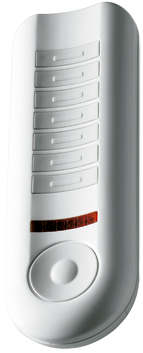

	RTXQ916A42     white Ergonomic transmitter to be used as portable one, fixed on the wall or as desktop type. It is done with a wall holder. With this kind of transmitters, the user can manage individually 18 radio motors eRS9 (JE50RA9; JE50SUN R9; JE50SUNSF R9; JE50FMMR9; JE60FCIR9) or 18 electromechanical motors connected to 18 receivers eRS9 (RPRT916A01T; RPRH916A01S; RPRD916A01; RPRE916A01). Also one of their channels can be used as a general command, managing at the same time, all the motors eRS8 included in a centralization. To do it is necessary learn itself, in many motors as you want to add in the group. Rolling Code System eRS9 compatible (Frecuency: 916 MHz - OCEANIA) 7 buttons to comand (Up-Down; Up-Down; Up-Stop-Down) One channel selection button and 6 LED to show the selected channel Learning button on the back Integrated wall holder Lithium battery 3V CR2430 Dimensions: 120 x 42 x 15 mm
	RTXP916A02 - RTXP916A04     grey Mini transmitter to be used as portable or parking type. It is done with a wall holder. With this kind of transmitters, the user can manage individually 1 radio motor eRS9 (JE50RA9; JE50SUN R9; JE50SUNSF R9; JE50FMMR9; JE60FCIR9) or 1 electromechanical motor connected to any receiver eRS9 (RPRT916A01T; RPRH916A01S; RPRD916A01; RPRE916A01). Also one of their channels can be used as a general command, managing at the same time, all the motors eRS9 included in a centralization. To do it is necessary learn itself, in many motors as you want to add in the group. Rolling Code System eRS9 compatible (Frecuency: 916 MHz - OCEANIA) 2 or 4 buttons to comand Learning button on the back Integrated wall holder Lithium battery 3V CR2032 Dimensions: 59 x 33 x 13 mm

WALL line of transmitters

RTXK916B04     white Radio keypad with five digit access code, to be used fixed on the wall. With this kind of transmitters, the user can manage individually and by a safety password, 1 radio motor eRS9 (JE50RA9; JE50SUN R9; JE50SUNSF R9; JE50FMMR9; JE60FCIR9) or 1 electromechanical motor connected to any receiver eRS8 (RPRT916A01T; RPRH916A01S; RPRD916A01; RPRE916A01). Also one of their channels can be used as a general command, managing at the same time, all the motors eRS8 included in a centralization. To do it is necessary learn itself, in many motors as you want to add in the group. Rolling Code System eRS9 compatible (Frecuency: 916 MHz - OCEANIA) 4 channels, 3 of them are encoded by a password and 1 is free 2 buttons to command (Up, Down) 1 button is for light; 1 button is for bell Integrated wall holder 9V alkaline battery Protection grade in IP54

Line of Receivers

RPRT916A01T Miniaturized receiver to be installed inside an aluminium window box. It allows the user to manage remotely an electromechanical motor. Rolling Code System eRS9 compatible (Frecuency: 916MHz - OCEANIA) For tubular motors up to 350 W Auto learned of first transmitter by switch off/on. Successive emitters can be memorized, without operate in the receiver Can work with up to 21/32 emitters Input for external switch Internal connection terminal board to facilitate motor and power installation Dimensions: 118 x 20 mm
